Your Step-by-Step DIY Build

DIY Resistance-Band Wall Anchor

A stud-mounted anchor that turns a resistance-band set into a cable station for rows, curls, and face pulls.

Part 01

Build Steps

One card at a time — your progress is saved.

0 of 4 steps done0%

01Step 1 of 4

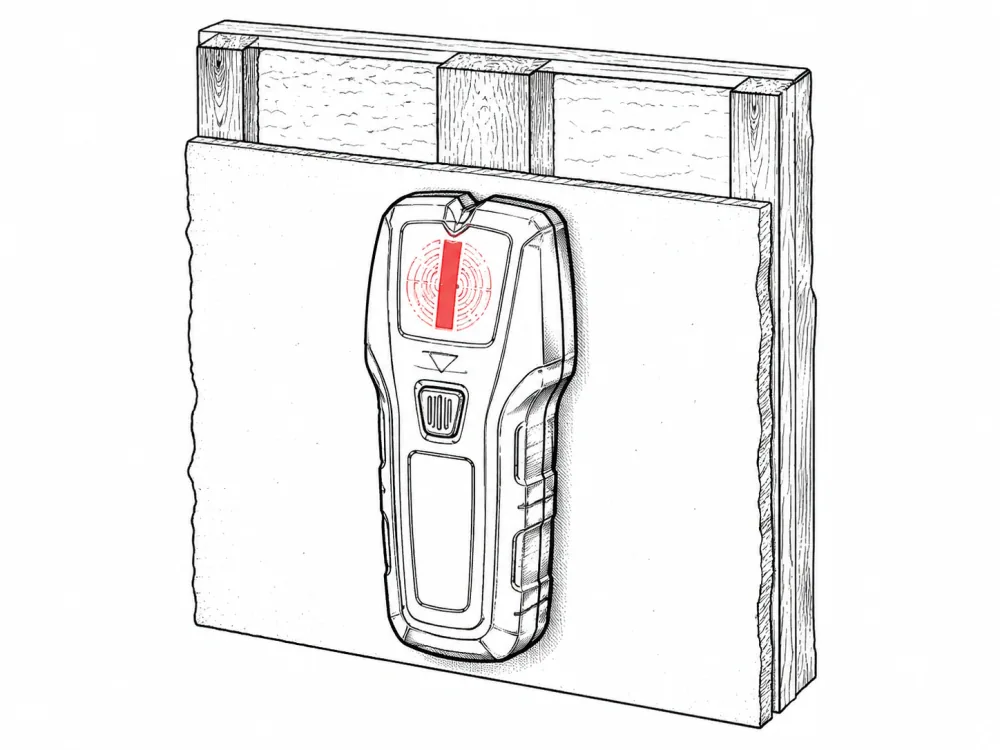

Use the stud finder to locate and mark a stud at both a low (~12") and high (~60") position. Mark the backer plate to span the stud.

02Step 2 of 4

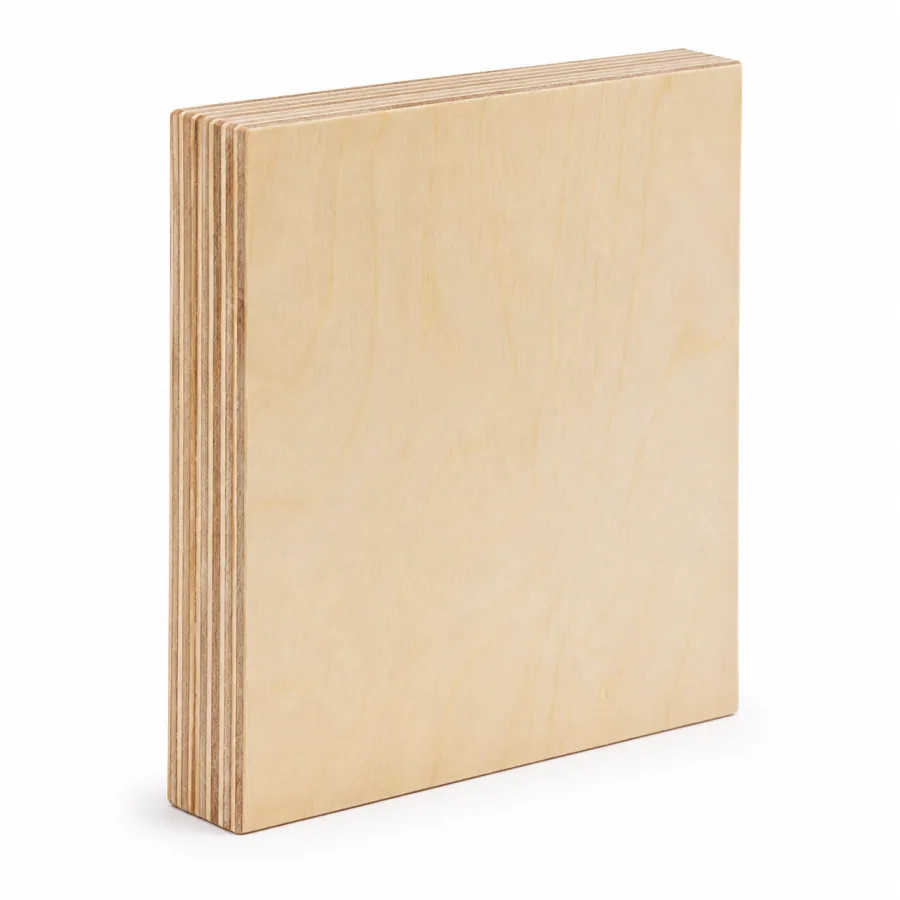

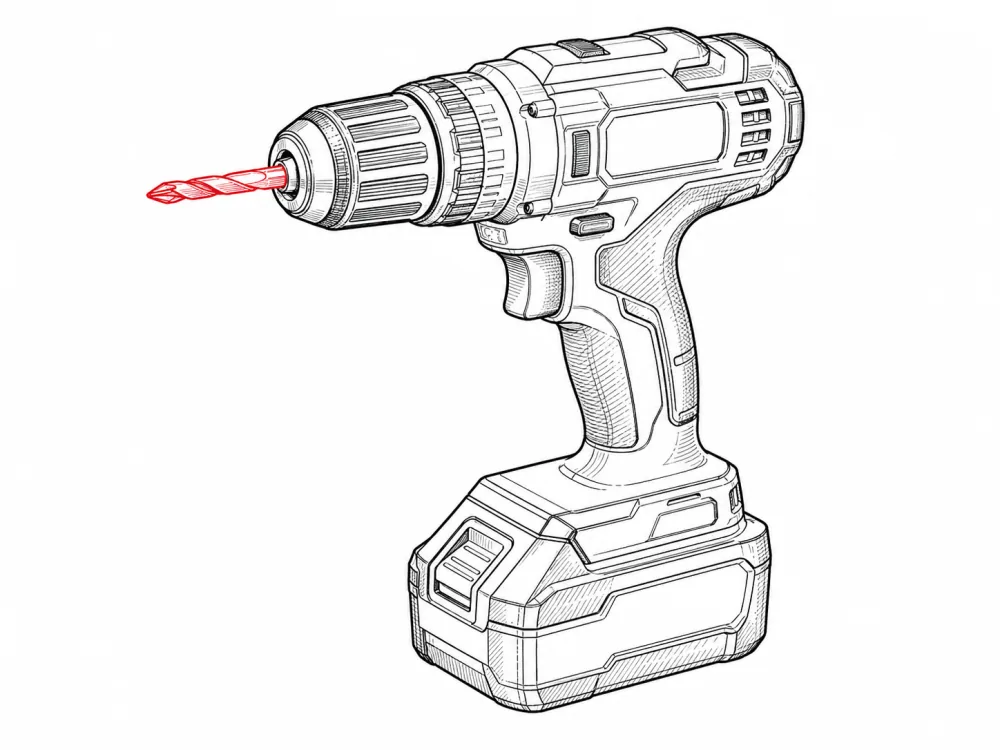

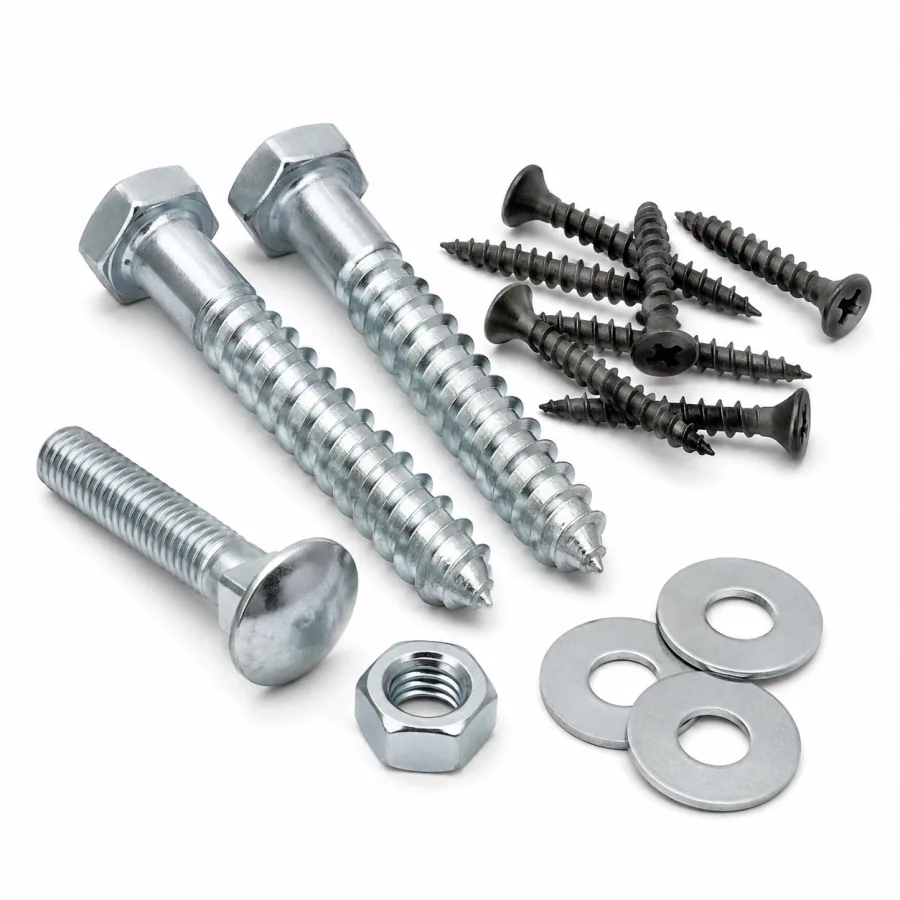

Drill pilot holes, then lag-screw the plywood plate to the stud at all four corners. The plate spreads the load across the framing.

03Step 3 of 4

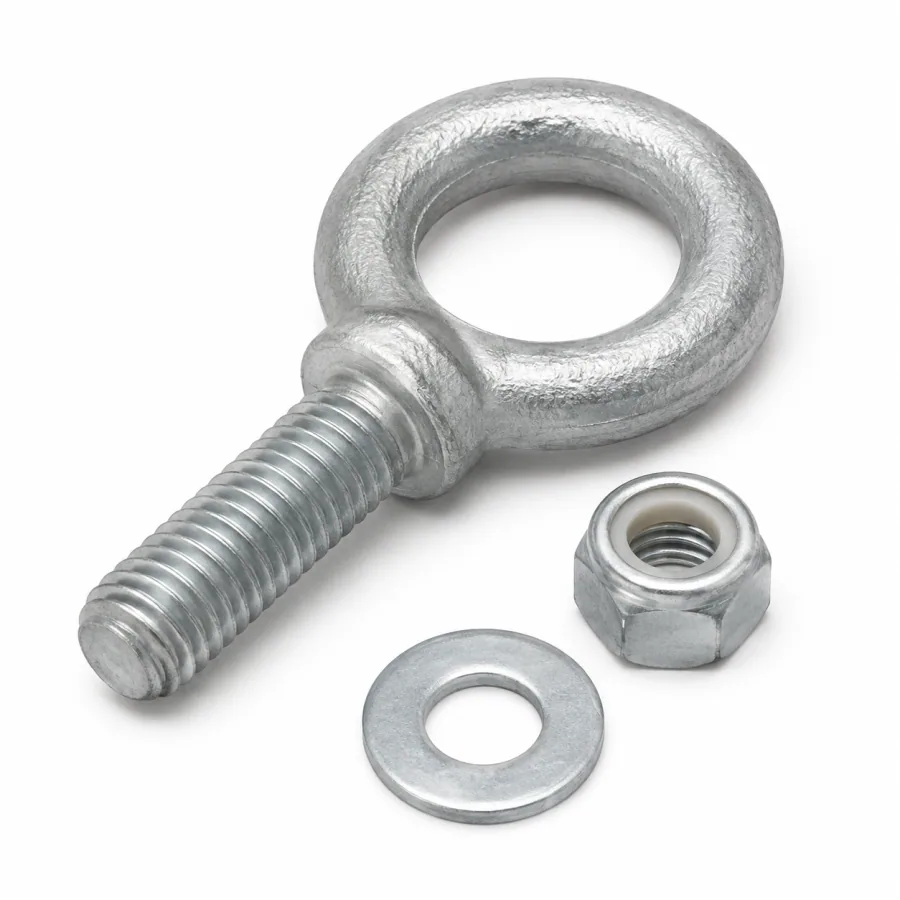

Drill and thread the two eye bolts through the plate into the stud — one low, one high — for high-row and low-curl angles.

WarningAnchor into a real stud, never drywall alone. A band pulling out under tension can snap back hard.

04Step 4 of 4

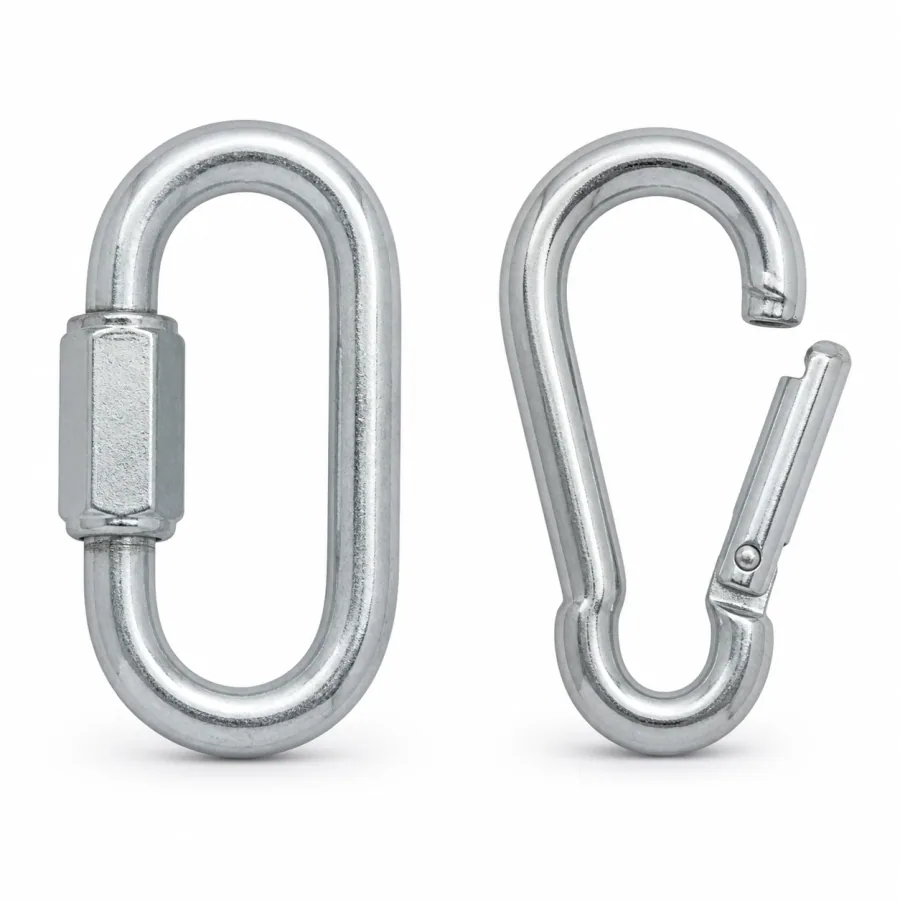

Clip the band to the eye bolt with the carabiner. Test with light tension first, watching the plate for any pull-away before going heavy.

Part 02

Watch the whole build on YouTube before you cut anything.

Watch the full build on YouTube

Part 03

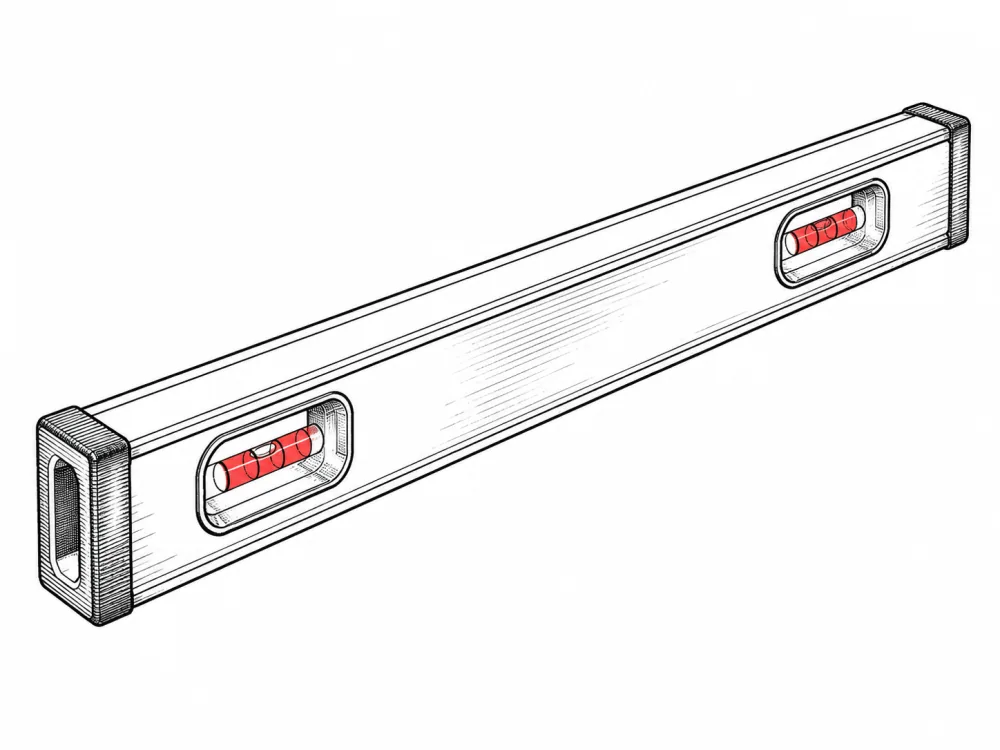

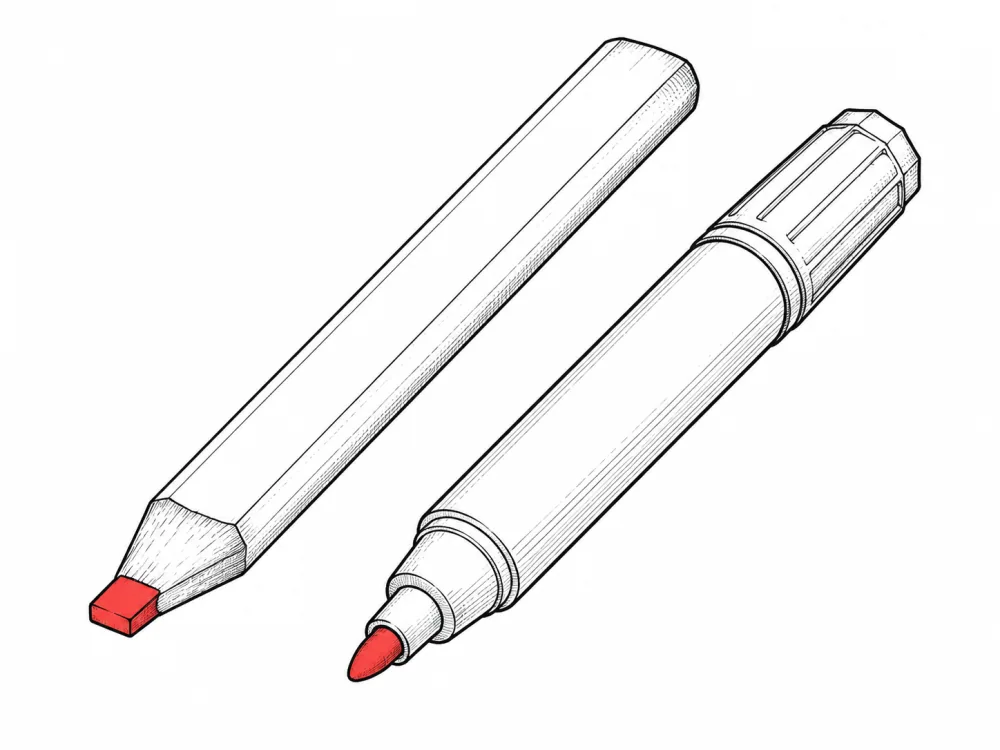

Have these on the bench before you start.

Part 04

The full parts list, with sizes and quantities.
